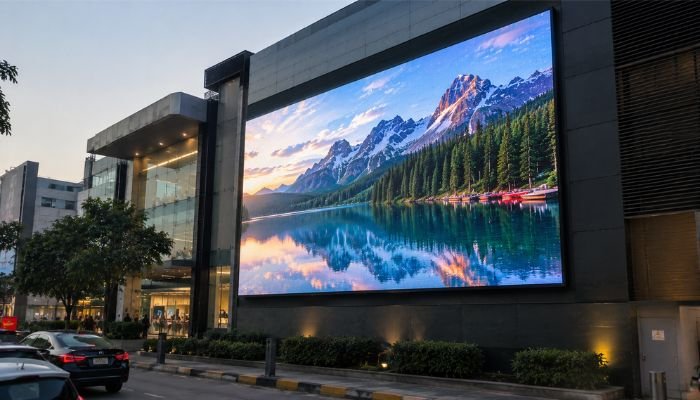

P5 SMD Screen: Features, Benefits, Applications & Viewing Distance

Scroll through outdoor advertising options in Pakistan and P5 comes up again and again, whether it’s a roadside billboard on a busy highway or a large screen behind a stage at a corporate event. There’s a good reason for that popularity: a P5 SMD screen hits a genuinely useful balance between sharpness, brightness, and cost for any display meant to be seen from a few metres away or more. This guide walks through exactly what a P5 SMD screen is, where it performs best, how it compares to finer and coarser pixel pitches, and what to check before committing to one — based on real specifications and installation experience from Smart One Power Solution.

What Is a P5 SMD Screen?

The ‘P’ in P5 stands for pixel pitch, and the number 5 tells you the distance in millimetres between the centre of one LED pixel and the centre of the next. On a P5 SMD screen, LED clusters are spaced 5mm apart, which is considerably wider than fine indoor pitches like P1.5 or P2.5, but tighter than large-format options like P8 or P10. That spacing gives a P5 SMD screen roughly 40,000 dots per square metre, built around SMD2525 or similar diode packages mounted on a standard 320mm x 160mm module.

Because the pixels sit farther apart than fine-pitch indoor panels, a P5 SMD screen isn’t meant to be viewed from a metre or two away — it’s engineered for distance viewing, which is exactly the situation most large outdoor and semi-outdoor displays are designed for in the first place.

Key Specifications of a Standard P5 SMD Screen

These figures line up closely with the Outdoor P5.0 High Refresh Rate LED Display Module supplied by Smart One Power Solution, which is built specifically to handle direct sunlight, dust, and Pakistan’s seasonal humidity without losing image quality over time.

How Far Should You Stand From a P5 SMD Screen?

A commonly used rule of thumb for LED displays is that the ideal minimum viewing distance in metres roughly matches the pixel pitch in millimetres. For a P5 SMD screen, that puts the comfortable viewing threshold at around 5 metres, with image quality improving even further as viewers move back. This makes P5 a natural fit for roadside billboards seen from moving traffic, stadium screens viewed from stands, and large event backdrops where the nearest audience member is rarely standing closer than a few metres away.

Where a P5 SMD Screen Performs Best

Outdoor Billboards and Roadside Advertising

Drivers and pedestrians view billboard content from a distance, which is exactly the range where a P5 SMD screen delivers a crisp, high-contrast image without the extra cost of a finer, closer-viewing pixel pitch.

Stadiums and Sports Venues

Large scoreboards, perimeter displays, and screens viewed from stadium seating benefit from P5’s balance of brightness and cost-efficiency across very large display areas.

Rooftop and Building-Facade Signage

Elevated placements naturally push viewing distance well beyond 5 metres, making P5 an efficient choice that avoids paying for finer resolution the audience will never notice from street level.

Large Outdoor Events and Concerts

Temporary stage screens and festival backdrops often use modular P5 SMD screen panels because they’re easier to transport, assemble, and disassemble than finer-pitch alternatives, while still looking sharp from typical crowd distances.

Semi-Outdoor Retail and Building Entrances

Covered or shaded storefronts and entrance canopies sometimes use P5 panels where moderate brightness and weather resistance are needed but full direct-sun exposure isn’t a constant factor.

P5 SMD Screen vs Other Popular Pixel Pitches

If your installation involves viewers who might occasionally stand closer than 5 metres, it’s worth comparing P5 against the finer options inside the broader Outdoor SMD Screens range. But for genuine long-distance viewing — highways, stadium seating, rooftops — P5 remains one of the most cost-efficient pixel pitches without a noticeable drop in perceived sharpness.

Key Benefits of Choosing a P5 SMD Screen

• Strong balance of image clarity and cost for large-format outdoor displays.
• Rated brightness high enough to stay legible under direct daylight when properly specified.
• Modular cabinet design makes large walls or billboards easier to assemble, transport, and repair section by section.
• Lower total LED count per square metre than finer pitches, which can mean a lower power draw and simpler cooling requirements at equivalent panel sizes.
• Widely supported by video processors and control systems, making content management straightforward for advertisers and event organisers.

Installation and Durability Considerations

• Weatherproof rating: Confirm the cabinet is rated at least IP65 on the front and IP54 or higher on the back for genuine outdoor exposure to rain and dust.
• Structural mounting: Large P5 SMD screen installations, especially on rooftops or building facades, need wind-load calculations and a properly engineered steel frame.
• Power and backup planning: Outdoor P5 panels draw meaningful power at full brightness, so backup capacity should be sized against maximum, not average, draw — covered in detail in our guide on SMD screen power consumption.
• Ambient light sensors: Automatic brightness adjustment helps a P5 SMD screen stay comfortable to view at night while remaining fully legible at midday.
• Regular maintenance access: Front or rear service access should be planned at installation, since large outdoor walls are far more costly to service without it.

Why Choose Smart One Power Solution for a P5 SMD Screen

With 15 years of experience across power systems and display technology, Smart One Power Solution has installed P5 SMD screens for advertising billboards, corporate exteriors, and large public venues across Pakistan, backing every project with proper structural planning, weatherproofing checks, and conditioned power backup rather than treating the screen as a standalone purchase.

That approach shaped the Outdoor SMD Screen installation at Dow Ojha, Karachi, a 3 x 6 metre wall-mounted P5 display engineered for durability and vibrant campus signage, as well as the Outdoor SMD Screen installation at MRF PAC Kamra, where long-distance viewing and open-sky sunlight exposure guided the final panel and brightness selection.

Indoor P5 vs Outdoor P5: Not the Same Product

It’s worth flagging that P5 exists in both indoor and outdoor variants, and the two are built quite differently despite sharing the same 5mm pixel pitch. Indoor P5 modules typically run at lower brightness, since they never need to compete with direct sunlight, and their cabinets prioritise a slim, lightweight design suited to walls and video walls inside buildings. Outdoor P5 modules, by contrast, are built with sealed, weatherproof housings, higher-rated power supplies, and brightness levels that can run two to three times higher than their indoor counterparts. Buying an indoor-rated P5 SMD screen for an outdoor application — or the reverse — is one of the most common and costly mistakes in LED display procurement, since neither the durability nor the brightness will match what the environment actually demands.

Content and Video Processing for a P5 SMD Screen

Because a P5 SMD screen has a lower pixel density than fine-pitch indoor panels, it’s especially well suited to bold, high-contrast graphics, large text, and simple branding elements rather than intricate, detailed imagery meant to be studied up close. A good video processor matched to the panel’s native resolution keeps scaling clean and avoids the soft, blurry look that comes from stretching lower-resolution source content across a large physical area. For billboard and event applications in particular, content designed specifically for the viewing distance and native resolution of a P5 SMD screen will always look sharper than generic content borrowed from a finer-pitch display.

Choosing the Right P5 SMD Screen Supplier

Beyond the pixel pitch itself, the real difference between a P5 SMD screen that performs reliably for years and one that becomes a maintenance headache usually comes down to the supplier. Look for a partner who verifies weatherproofing certifications rather than just quoting them, offers a genuine warranty backed by local after-sales service, and is willing to visit the site before finalising a brightness and power specification instead of selling a generic package. For large-format billboards and stadium installations especially, structural engineering experience matters just as much as the LED panel quality itself, since a well-built screen mounted on an inadequate frame is still a liability.

Frequently Asked Questions

What does P5 mean on an SMD screen?

P5 refers to the pixel pitch — the 5mm distance between adjacent LED pixels on the panel. It’s designed for viewers standing roughly 5 metres away or farther, making it well suited to billboards, stadiums, and large outdoor displays.

Is a P5 SMD screen good for close-up indoor viewing?

Not ideally. At distances under 5 metres, the individual pixels on a P5 panel can become visible to the eye. For close indoor viewing, a finer pixel pitch like P2.5 or P1.8 is a better match.

Can a P5 SMD screen be used outdoors in direct sunlight?

Yes, provided it’s an outdoor-rated P5 module with adequate brightness (typically 4,500 nits or higher) and proper IP-rated weatherproofing on both the front and rear of the cabinet.

How much does a P5 SMD screen cost compared to P2.5 or P8?

A P5 SMD screen generally sits in the middle of the pricing range — more expensive per square metre than coarser P8 or P10 panels due to higher LED density, but less expensive than finer pitches like P2.5, which pack in significantly more diodes.

How long does a P5 SMD screen typically last?

With correct installation, weatherproofing, and a quality power supply, outdoor P5 LED modules commonly deliver well over 50,000 hours of reliable operation before noticeable brightness degradation.

Do outdoor P5 screens need special power backup?

Yes, outdoor P5 installations should size backup power (UPS or generator) against the panel’s maximum brightness draw rather than its average draw, since brightness spikes during peak daylight hours significantly increase power consumption.

Final Thoughts

A P5 SMD screen earns its popularity honestly — it delivers the clarity, brightness, and durability that large-format outdoor and long-distance displays actually need, without the added expense of a pixel pitch built for close-up viewing nobody at a billboard or stadium will ever get. Getting the brightness rating, weatherproofing, and structural mounting right at the planning stage is what separates a P5 installation that performs reliably for years from one that runs into avoidable problems within its first season.
